ORB SHELF TYPES

AT&T RHTAS Site

ORB SHELF TYPES - ATT

Identifying the Correct Rail Type is based on
Numbering & Mounting Variations

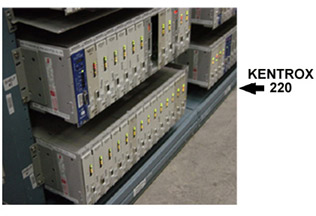

KENTROX 220
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
T1MRH4A1RA T1MRH4B1RA T1MRP2A7RA T1MRP4B7RA T1MRK212RA T1MRP2B7RA	Click Here to Identify the Proper Model

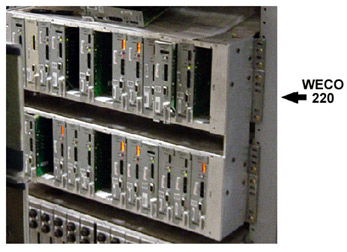

WECO 220
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
T1MRH401RA T1MR400DRA T1MR400GRA T1MR100ARA T1MR200GRA	Click Here to Identify the Proper Model

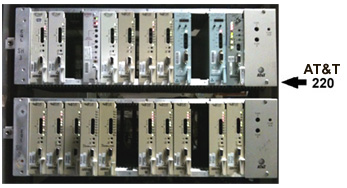

AT&T 220* *Old AT&T 220 - 12 cards per shelf
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
T1M1A10ARA	Click Here to Identify the Proper Model

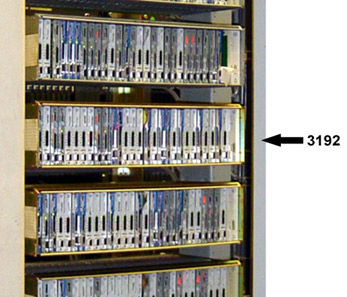

3192 - Wescom / Charles Industries
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
T1MRWA05RA T1MRWA25RA	Click Here to Identify the Proper Model

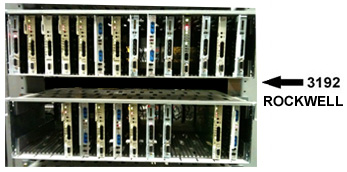

3192 - Rockwell* *3192 Rockwell only allows 14 cards per shelf
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
T1MRW605RA	Click Here to Identify the Proper Model

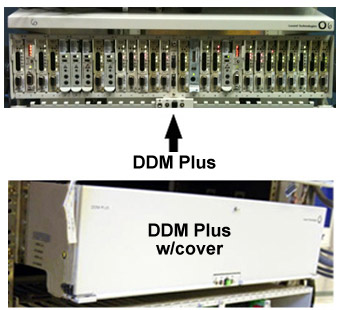

DDM PLUS
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
T1MRUJ0XRA T1MRUL0XRA T1MRUK0XRA T1MRU00XRA	Click Here to Identify the Proper Model

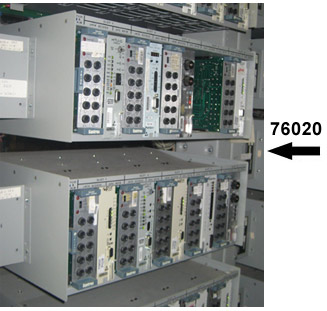

KENTROX 76020 5 Slot HDSL ORB SHELVES
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
T1STKAC4	Click Here to Identify the Proper Model

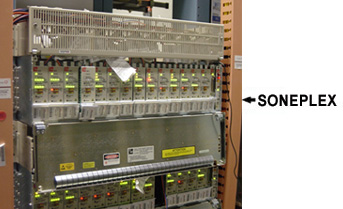

SONEPLEX
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
SNM16D03MA	USE ADAPTER PN # RH-SPTA3000 (RJ45 to RS232) w/ TAG RH-CAT5 (4pr cable)

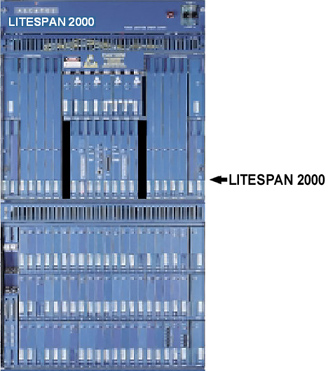

LITESPAN 2000
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
	USE ADAPTER PN # RH-SPLS w/ TAG RH-CAT5 (4pr cable)

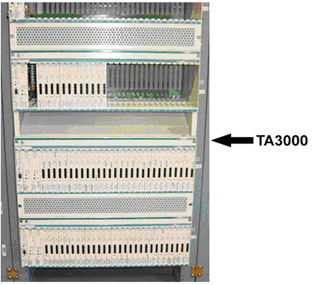

TA3000
CLEI / HECI Code	Recommended Shelf Interface Unit (rail)
T1CZCDDC M3CUTYOBAA M3M1VB0B	USE ADAPTER PN # RH-SPTA3000 (RJ45 to RS232) w/ TAG RH-CAT5 (4pr cable)
