TAG Cabinet Solutions for Frontier



Go to:

1. Nortel OPAC / OPM 7. Mesa XL (Cell Site)
  2. Nortel DMS OPM 8. SLC96 (36 Type)
  3. 90 Type / SLC 2000 9. 36B
  4. Mesa 2 10. CommScope 52B
  5. Mesa 4 11. Noren Cooling Unit
  6. Mesa 6 (Marconi) 12. VRAD / Purcell ALP-248/448
    13. Mesa ECU (2-4-6)


TAG OSP Replacement Fans (.pdf)

Description:

46 Page booklet w/ Frontier UPN #'s
for NEW OSP Cabinet / Tray Replacement Fans
provided by TAG, Inc.

Last Update: 10/20/23, (Rev.57)






1

Nortel OPAC / OPM Cabinet Solutions (.pdf)

# TF-NTOPAC
48V Fan for Nortel OPAC / OPM Cabinet

# TF-NTOPAC-02
48V Fan for Nortel OPAC / OPM Cabinet

(Inner Roof of Cabinet) - 8 or 12 per cabinet
(Internal Tray Fans) - 2 per tray

return to top





Nortel DMS OPM Cabinet Solutions



2

Nortel DMS OPM Cabinet Solutions (.pdf)

# TF-DMS06
48V Fan for Booster Fan Unit (BFU) found in DMS OPM Cabinets
(BFU Fans) - 3 per cabinet

# TFR-8X06ABT
TAG Refurbishing - Paddleless Alarm Conversion Upgrade for NT8X06AB Fan Trays found in DMS OPM Cabinets

(Internal Trays) - 2 trays per cabinet

return to top







3

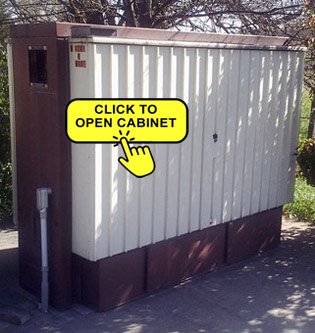

80 Type - SLC2000 Cabinet Solutions (.pdf)


# TF-SLC201-02
48V Heat Exchanger for 80 Type Cabinet
(Side of Cabinet) - 2 per cabinet


# TF-SLC201
48V Fan for
SLC 2000 4A / 4B Fan Trays

(Internal Tray Fans) - 2 per tray


# TFC-114A-01
114A Fan Control Unit for
80 Type Cabinet Heat Exchangers

(Heat Exchanger Controller) - 1 per cabinet

# TFC-LU4-01
Alarm Control Board for
Lucent 4A / 4B, 4G / SLC 2000 Fan Trays
& 114A Control Units

(Tray Controller Board) - 1 per tray/controller

# TF-SLCBC-01
48V Cooling Fan for 80 Type Cabinet Battery Compartment

- 1 per cabinet


# TFC-116A-01
Alarm Control Board for
Lucent 116A Battery Fan Unit

(Control Board)

- 1 per cabinet

return to top






4

Mesa 2 Cabinet Solutions (.pdf)

# TF-MC225-01
(225mm) Heat Exchanger
(Top Solar Panel Fan) - 1 per cabinet

# TF-MC225-02
(225mm) Heat Exchanger
(Bottom Internal Fan) - 1 per cabinet

return to top






5

Mesa 4 Cabinet Solutions (.pdf)

# TF-MC225-01
(225mm) Heat Exchanger
(Top Solar Panel Fan) - 2 per cabinet

# TF-MC225-02
(225mm) Heat Exchanger
(Bottom Internal Fan) - 2 per cabinet

return to top






6


Mesa 6 (Marconi) Cabinet Solutions (.pdf)


# TF-MESA6-01
48V Heat Exchanger for

Marconi Mesa "Bottom" HX Cabinet
(Bottom Heat Stack Fan) - 4 per cabinet

# TF-MCABTZ-01
48V Heat Exchanger for

Marconi Mesa "Top" HX Cabinet (Tarzan)
(Top Heat Stack Fan) - 2 per cabinet

# TF-FA400-01

48V Fan
for Marconi Mesa Master Fan Tray
(Internal Tray Fans) - 4 per cabinet

# TFC-FA400-01
Alarm Control Board for Marconi Mesa Master Fan Tray
(Fan Tray Alarm Board) - 1 per tray

# TF-FA400-02

48V Fan
for Marconi Mesa Slave Fan Tray
(Internal Tray Fans) - 12 per cabinet

return to top







7


Mesa Cell Site Cabinet Solutions (.pdf)


# TF-MC225-01
(225mm) Heat Exchanger for
Cell Site Emerson Mesa XL Cabinet Door

(Top Left & Lower Right) - 2 per cabinet

# TFC-MESA-01
Alarm Controller for Mesa Cabinet
(Inside Door) - 1 per cabinet

return to top







8

SLC96 (36 Type) Cabinet Solutions (.pdf)

# TFT-SLC96-AC01
110VAC Fan for
SLC96 (36 Type) Cabinets
w/ Bracket Assembly

# TF-SLC96-AC02
110VAC Fan for SLC96 (36 Type) Cabinets

(fan only)

(use in Fan Assembly KS22099L5 found in
36 Type Cabinets)

return to top







9

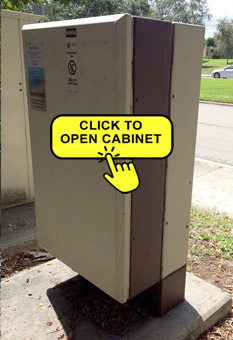

36B Cabinet Solutions (.pdf)

# TF-LU2C
48V Fan for Lucent 2C Fan Unit / Tray

(Internal Tray Fans) - 3 per tray

# TFC-LU2BC-01
Alarm Control Board for
Lucent 2B & 2C Fan Trays

(Fan Tray Alarm Board) - 1 per tray

#T-6W3F-10
Test Cord for 36B Cabinet,
Protector / 526A plug to
125 Station Protector (10')

- 1 per cabinet

return to top






10

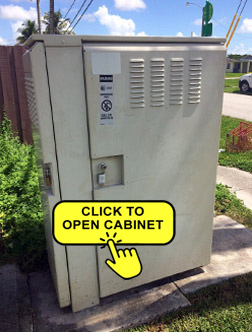

CommScope 52B Cabinet Solutions (.pdf)

# TF-ALC-01
48V Fan for Alcatel 7300 Fan Tray

(Internal Tray Fans) - 4 per tray

# TF-COM6DF-01
48V Fan for
Fan Assembly in 52B Cabinet
(Internal Tray Fans) - 3 per tray

# TF-COM6BC-01
48V Fan for
52B Cabinet Door
(Door of Cabinet) - 2 per cabinet

return to top







11

Noren Cooling Unit Heat Exchangers (.pdf)

# TF-NP0402-01
48V Heat Exchanger for

Noren Cooling Unit - Internal (6.71K),

(equiv. to "THE SMART FAN", MODEL # NP0402)

# TF-NP0414-02
48V Heat Exchanger for

Noren Cooling Unit - External (8.45K)

(equiv. to "THE SMART FAN", MODEL # NP0414)

return to top







12


VRAD / Purcell ALP-248/448 Cabinet Solutions (.pdf)

# TF-ALC7330-4
Alcatel 7330 VRAD Fan Kit
w/ Quick Install Template Plate
(Internal Tray Fans) - 4 per tray

# TF-PURALP-01
48V Heat Exchanger Fan
for
ALP-248/448 (Purcell) Cabinet
w/ 4 Wire Plug (7' cable)
(Cabinet Door "Bottom") - 6 per cabinet
(Battery) - 1 per cabinet


# TF-PURALP-02
48V Heat Exchanger Fan
for
ALP-248/448 (Purcell) Cabinet
w/ 4 Wire Plug & Grommet
(Cabinet Door "Top") - 6 per cabinet


return to top








13

Mesa ECU Cabinet Solutions (.pdf)

# TFC-MESA246-01
Environmental Control Unit (ECU)

for Fans in Remote Cabinet Sites

Includes: (2) Temperature Sensors

return to top



 Contact a TAG sales representative today at: 856-753-8585
